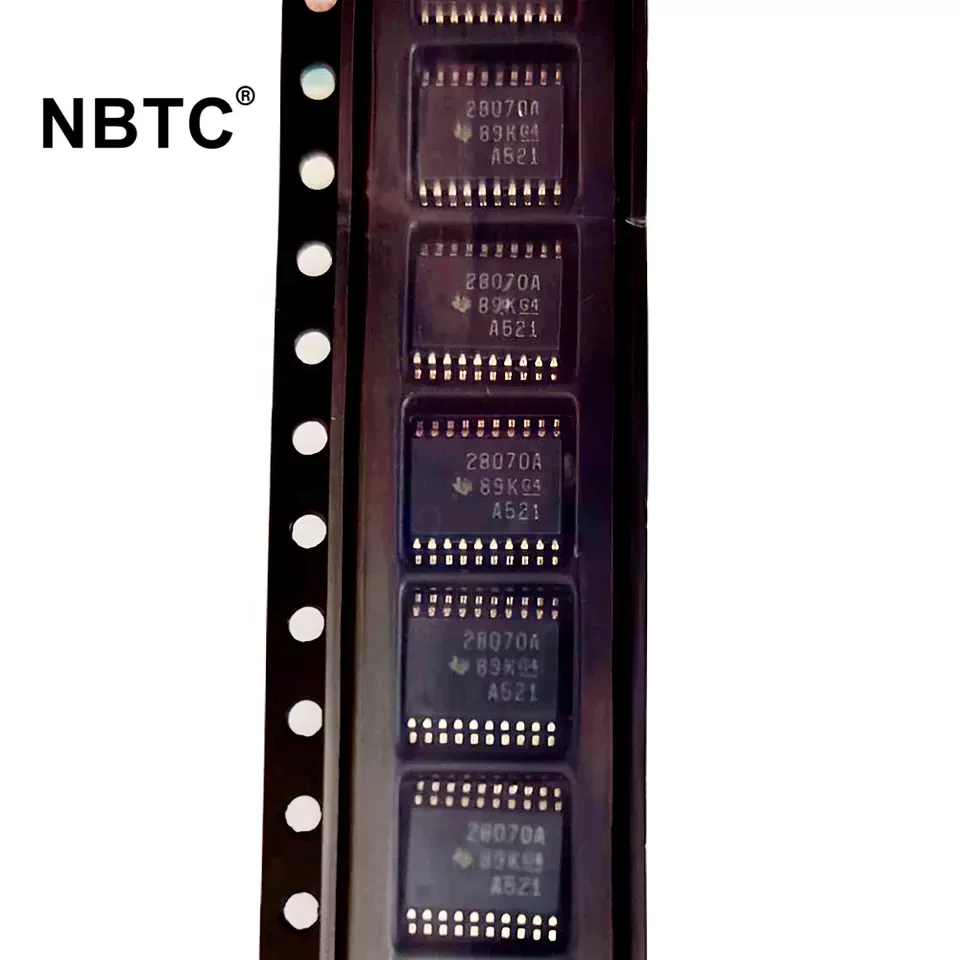

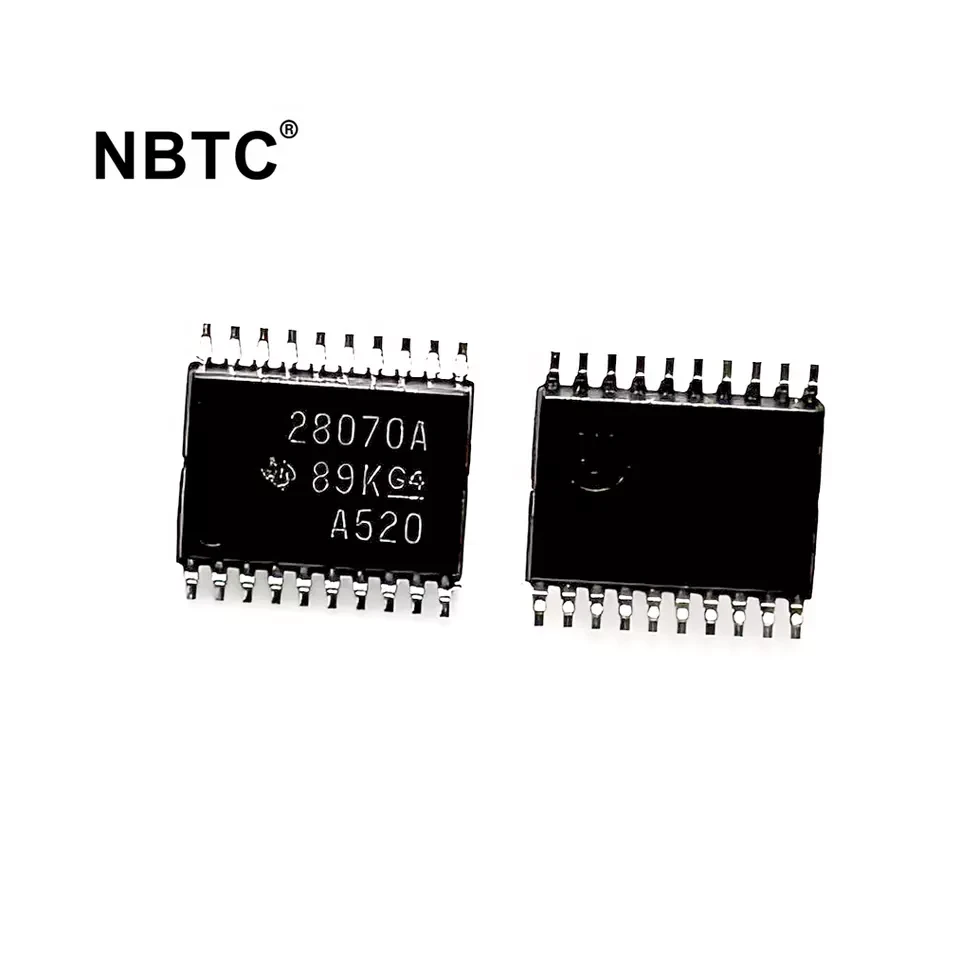

New original UCC28070 UCC28070A Interleaving Continuous Conduction Mode PFC Controller

The UCC28070 is an advanced power factorcorrection (PFC) device that integrates two pulsewidth modulators (PWMs) operating 180° out of phase. This interleaved PWM operation generates substantial reduction in the input and output ripple currents, allowing the conducted-EMI filtering to become easier A significantly improved multiplier design provides a shared current reference to two independent current amplifiers that ensures matched average-current mode control in both PWM outputs while maintaining a stable, low distortion, sinusoidal input-line current.

UCC28070 device contains multiple innovations including current synthesis and quantized voltage feed-forward to promote performance enhancements in PF, efficiency, THD, and transient response. Features including frequency dithering, clock synchronization, and slew rate enhancement further expand the potential performance enhancements. A variety of protection features including output-overvoltage detection, programmable peak-current limit, undervoltage lockout, and open-loop protection.

Notice:

1. We can buy other electronic accessories and IC accessories for you. You can tell us the product name and quantity you need,
2. We have a lot of parts, but not all of them are uploaded. If you don’t find the model you need, you can contact us and tell me the parts and quantity you need.
3. Avoid damage or loss during transmission, please check carefully when you receive the parts. Please contact me immediately with any questions. Let’s work together to solve this problem quickly!

Features:

1. Interleaved Average Current-Mode PWM Control With Inherent Current Matching
2. Advanced Current Synthesizer Current Sensing for Superior Efficiency
3. Highly-Linear Multiplier Output With Internal Quantized Voltage Feed-Forward Correction for Near-Unity PF
4. Programmable Frequency from 30 kHz to 300 kHz
5. Programmable Maximum Duty-Cycle Clamp
6. Programmable Frequency-Dithering Rate and Magnitude for Enhanced EMI Reduction
– Magnitude: 3kHz to 30kHz
– Rate: Up to 30 kHz
7. External-Clock Synchronization Capability
8. Enhanced Load and Line Transient Response through Voltage Amplifier Output Slew-Rate Correction
9. Programmable Peak Current Limiting
10. Bias-Supply UVLO, Overvoltage Protection, OpenLoop Detection, and PFC-Enable Monitoring
11. External PFC-Disable Interface
12. Open-Circuit Protection on VSENSE and VINAC pins
13. Programmable Soft-Start

Applications:

1. High-Efficiency Server and Desktop Power Supplies
2. Telecom Rectifiers
3. White Goods and Industrial Equipment
