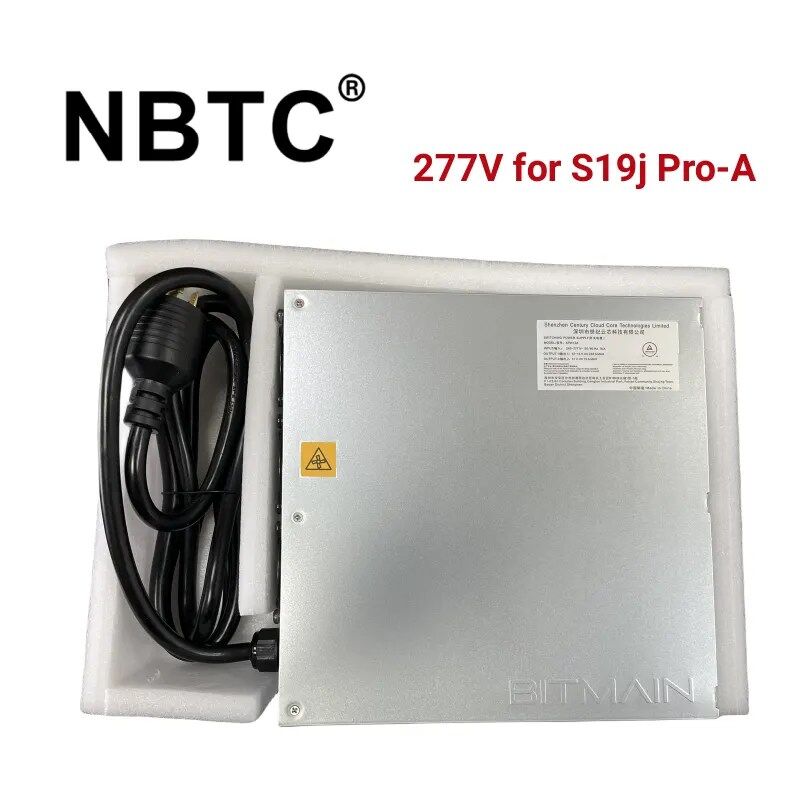

New Original APW12A 12V-15V_V1.2（277V Customized) POWER SUPPLY PSU for Antminer S19j Pro-A SHA256 Air-cooling Miner
Note:
APW12A power supply needs to be equipped with approved C-type 20A circuit breaker as over-current protective device to be installed external to the equipment.
| Product Glance | |
| Out1 : | |
| DC Voltage : | 12V-15V |
| Rated Current(277V input) : | 233A |
| Ripple & Noise : | <1% |
| Line Regulation : | <1% |
| Load Regulation : | <1% |
| Setup Time : | <2S |
| Short Circuit Protection : | >10mS |
Detailed Characteristics
Out2:
DC Voltage: 12.3V
Rated Current(277V input): 15A
Ripple & Noise: <1%
Voltage Accuracy: 12.2V—12.4V
Line Regulation: <1%
Load Regulation: <1%
Setup Time: <2S
Short Circuit Protection: >10mS
Input:
Voltage Range: 277V AC ±10%
Frequency Range: 60Hz
Power Factor: >0.99(full load)
Leakage Current: <1.5mA (220V 50Hz)
Protection:
Input low-voltage protection value: 170V-180V AC
Output Short Circuit: Yes
Overheat Protection: Yes
Over-current Output: 291A-350A (protection value varies under different voltage)
Environment:
Operating Temperature: -20-45℃
Operating Humidity: 20%-90%RH (non–condensing)
Altitude: < 2000m
Structure:
Dimensions: 254.6mm*251.6mm*63mm
Net Weight: 3.6kg MAX
Cooling System: Forced-air cooling
Noise: 45dBA
