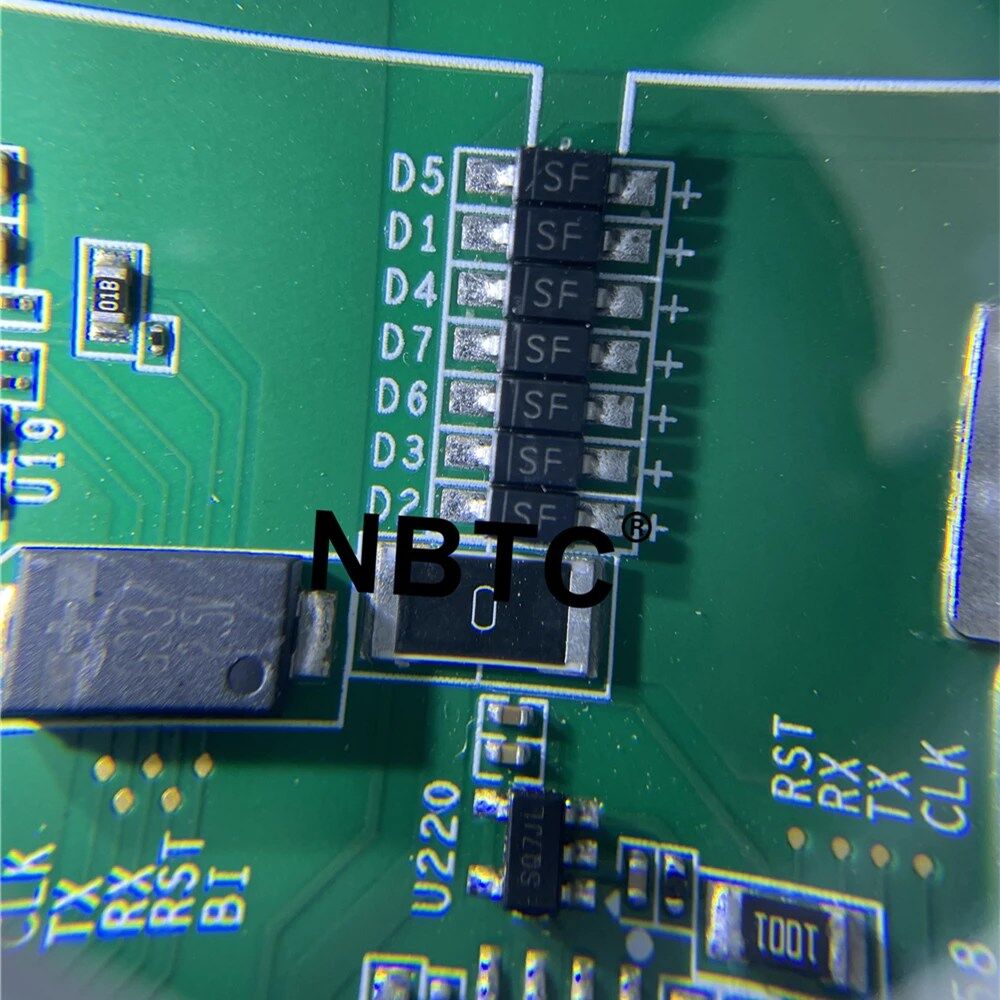

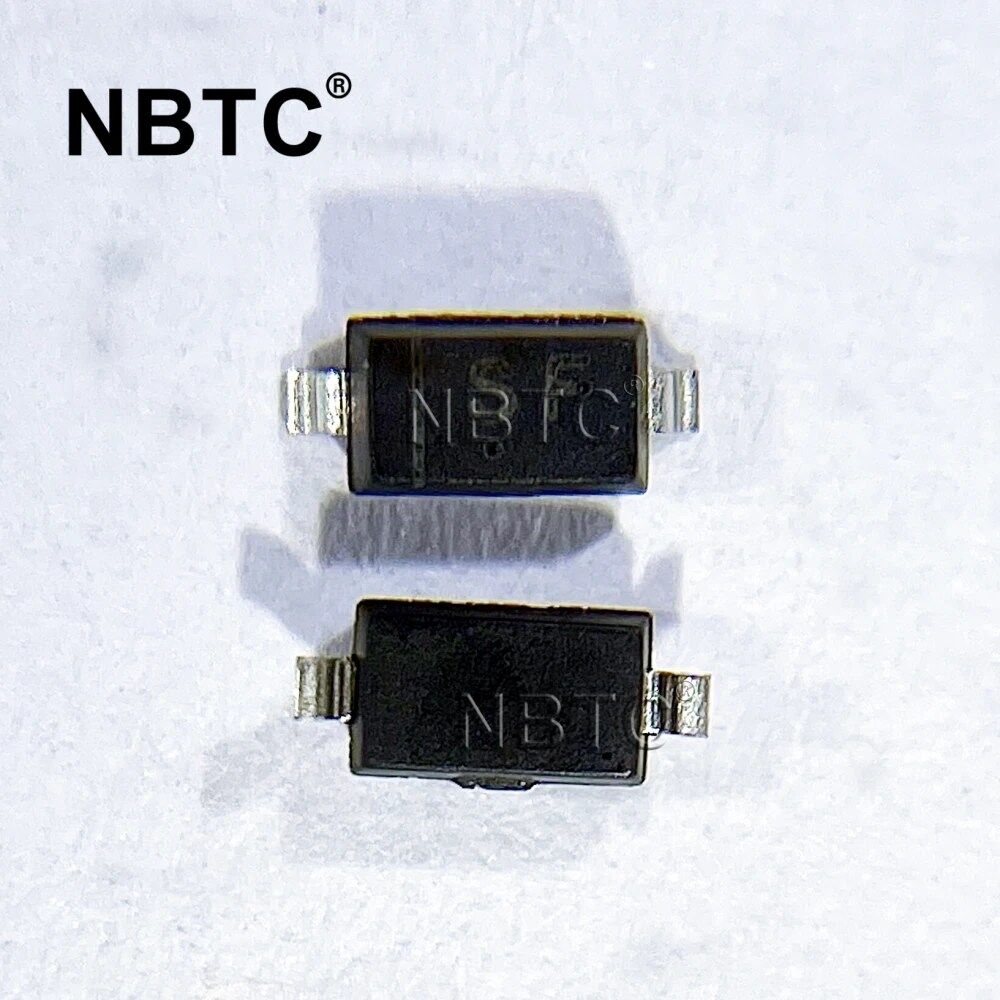

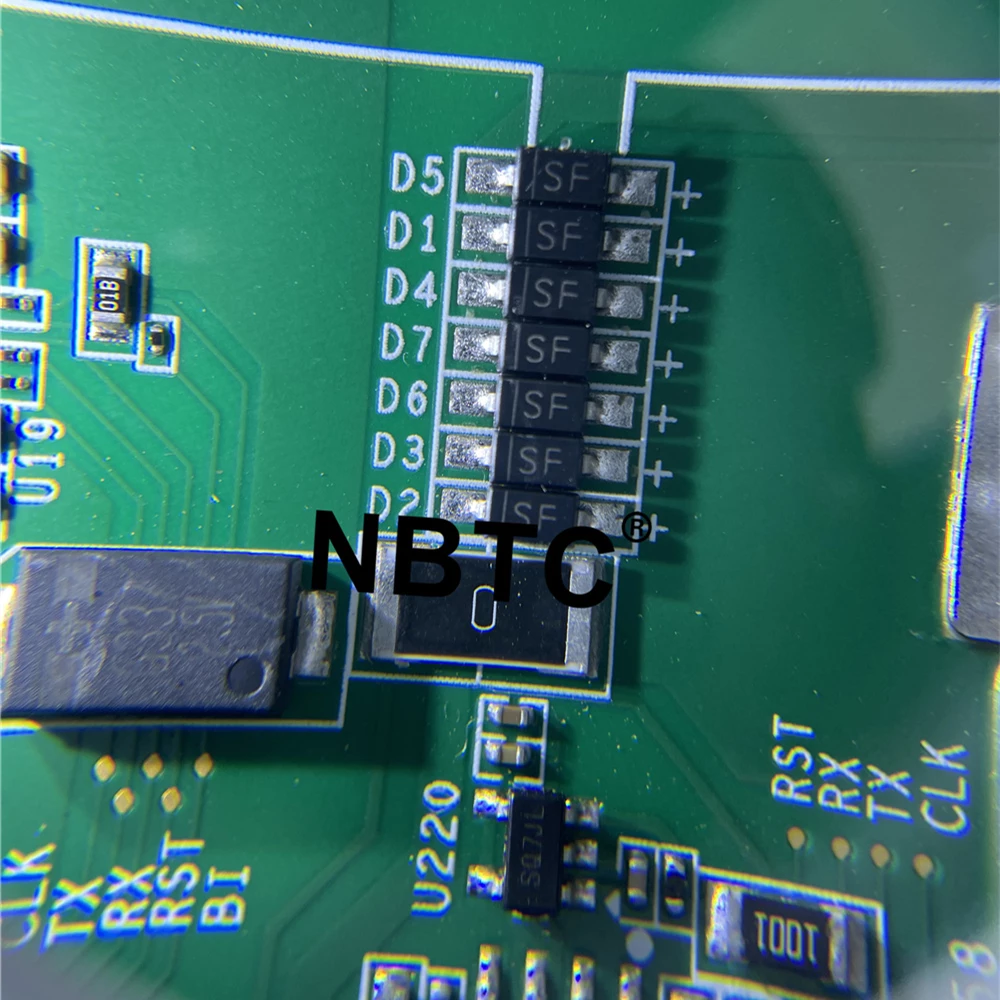

B0540W SF B0540W-7-F Schottky Diode 0.5A 40V SOD-123

B0540W SF Info：

SF B0540W Features:

1. Low Forward Voltage Drop
2. Guard Ring Construction for Transient Protection
3. High Conductance
4. Totally Lead-Free & Fully RoHS Compliant
5. Halogen and Antimony Free. “Green” Device
6. This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability.
7. An Automotive-Compliant Part is Available Under Separate
8. Working peak reverse voltage: 40V
9. DC blocking voltage: 40V
10. RMS reverse voltage: 28V
11. Average rectified output current (@TL= 100°C): 0.5A
12. Operating and storage temperature Range: -65 °C to +125 °C

SF B0540W Mechanical Data:

1. Package: SOD123
2. Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
3. Moisture Sensitivity: Level 1 per J-STD-020
4. Lead Free Plating (Matte Tin Finish Annealed over Alloy 42 Leadframe) Solderable per MIL-STD-202, Method 208
5. Polarity: Cathode Band
6. Weight: 0.01 grams (Approximate)
