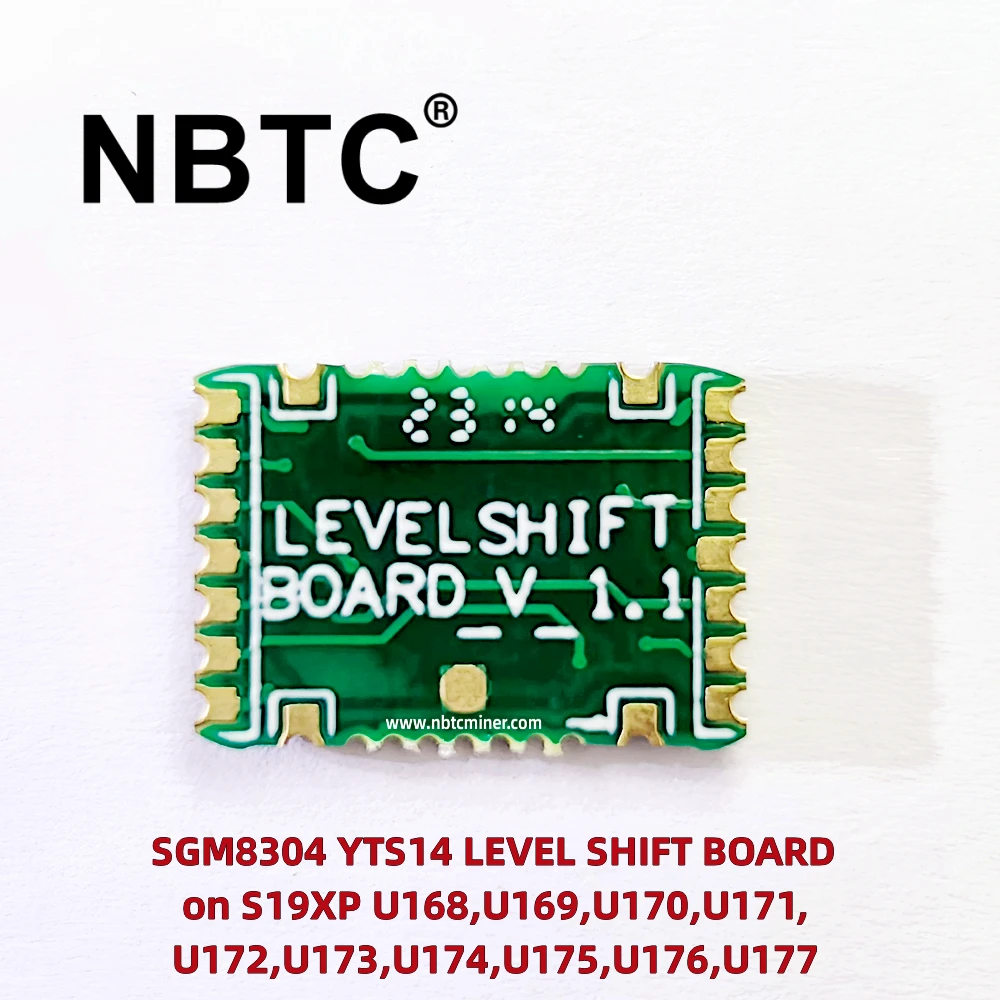

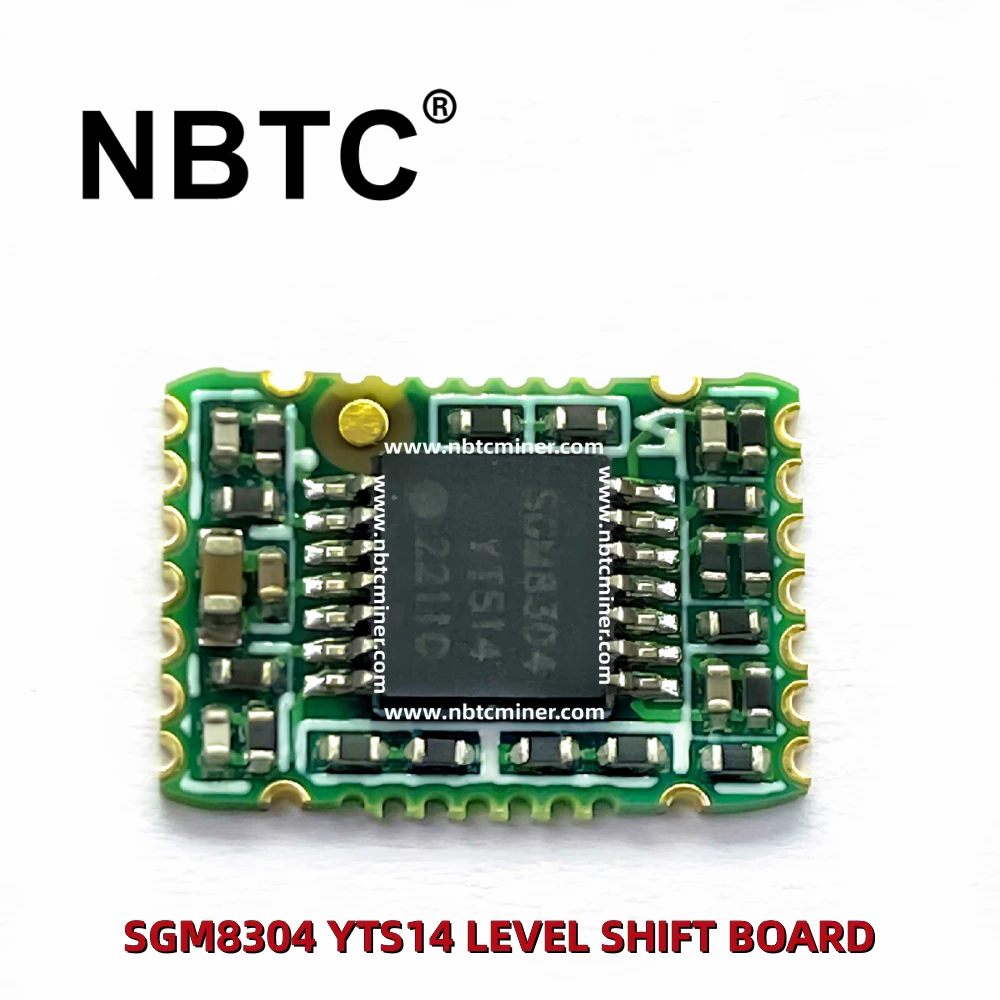

NEW Original SGM8304 YTS14 LEVEL SHIFT BOARD power module on S19 XP hash board U168,U169,U170,U171,U172,U173,U174,U175,U176,U177

Upgrade your Antminer with the SGM8304 operational amplifier module and increase mining efficiency. With its high-gain and frequency-compensated design, this amplifier module is the perfect replacement for the SGM8304 computing chip on the S19 S19XP hash board. It is designed to operate on a single power supply while providing a wide voltage range, making installation easy and hassle-free. By amplifying your signal’s voltage, you’ll experience improved mining performance in no time.

Don’t settle for mediocre performance, upgrade your Antminer with the SGM8304 operational amplifier module today!

SGM8304 YTS14:

The SGM8301 (single), SGM8302 (dual) and SGM8304 (quad) are unity gain stable devices that combine high speed performance and rail-to-rail outputs. These devices are targeted for applications where an input or an output is exposed to the outside world, such as video and communications.

These devices can operate from ±2.25V to ±6V dual power supplies or from +4.5V to +12V single supplies. The common mode input voltage range extends to the negative power-supply rail (ground in single-supply applications).

The SGM8301/2/4 consume only 8.5mA of quiescent supply current per amplifier while achieving a 100MHz -3dB bandwidth, 56MHz small signal bandwidth for -0.1dB gain flatness, and a 155V/µs slew rate.

The SGM8301 single is available in Green SOT-23-5, MSOP-8 and SOIC-8 packages. The SGM8302 dual is available in Green SOIC-8 and MSOP-8 packages. The SGM8304 quad is available in Green SOIC-14 and TSSOP-14 packages. The SGM8301/2/4 are specified over the extended -40℃ to +85℃ temperature range.

*Features

 +4.5V to +12V Single Supplies or ±2.25V to ±6V Dual Power Supplies
 High Speed
-100MHz -3dB Bandwidth
-56MHz -0.1dB Gain Flatness
-155V/µs Slew Rate
 Rail-to-Rail Output
 Low Differential Gain/Phase: 0.02%/0.02°
 High Output Drive: 103mA
 -40℃ to +85℃ Operating Temperature Range

*Applications

Video Line Driver
Video-on-Demand
Set-Top Boxes
Surveillance Video Systems
Analog-to-Digital Converter Interface
CCD Imaging Systems
Digital Cameras
