รายละเอียดเพิ่มเติม

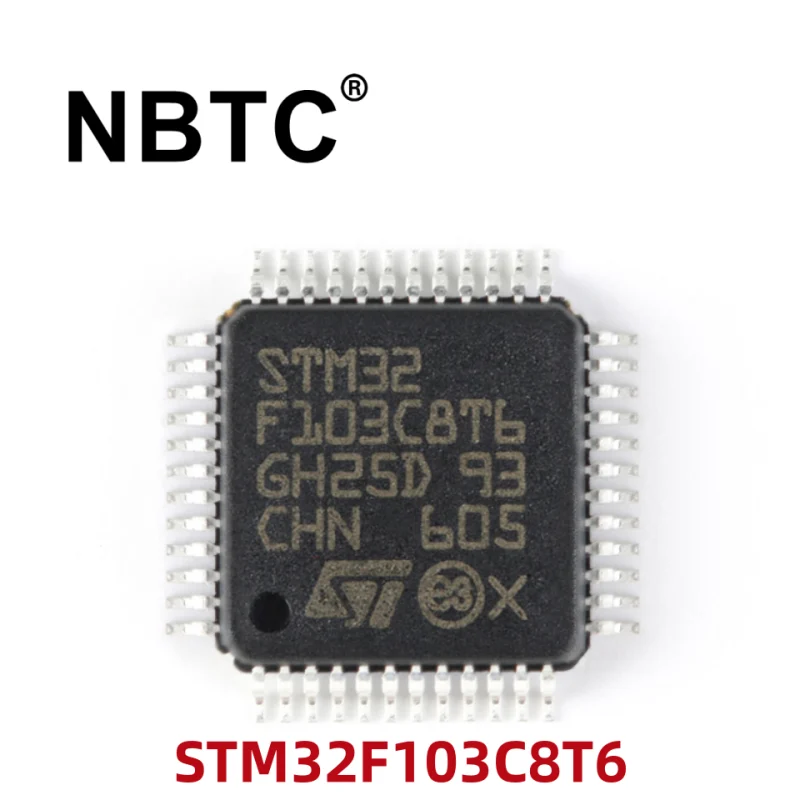

ชื่อผลิตภัณฑ์ | STM32F103C8T6 |
ชุด | STM32F1 |
บรรจุุภัณฑ์ | Tray |
สถานะสินค้า | คล่องแคล่ว |
โปรเซสเซอร์หลัก | ARMCortex-M3 |
ขนาดแกน | 32-Bit Single-Core |
ความเร็ว | 72MHz |
การเชื่อมต่อ | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB |
อุปกรณ์ต่อพ่วง | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
จำนวน I/O | 37 |
ขนาดหน่วยความจำของโปรแกรม | 64KB (64K x 8) |
ประเภทหน่วยความจำโปรแกรม | แฟลช |
ขนาดอีพรอม | – |
ขนาดแรม | 20K x 8 |
แรงดันไฟ – แหล่งจ่าย (Vcc/Vdd) | 2V ~ 3.6V |
ตัวแปลงข้อมูล | A/D 10x12b |
ประเภทออสซิลเลเตอร์ | ภายใน |
อุณหภูมิในการทำงาน | -40°C ~ 85°C (TA) |
ประเภทการติดตั้ง | พื้นผิวติด |
บรรจุภัณฑ์ / กล่อง | 48-LQFP |
The STM32F103xx medium-density performance line family incorporates the high-performance ARMCorte-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN.
STM32F103C8T6 IS suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications , PLCs, inverters, printers, scanners , alarm systems, video intercoms, and HVACs.
